How to wire the Ericsson IBR900 / IBR600 router for digital alerting

This article explains how to wire the Ericsson IBR900 / IBR600 router to send digital alerts to HAAS Alert’s Safety Cloud.

Warning: When using a GPIO extensibility cable, DO NOT leave unused wires exposed. Cap or tape off unused wires to prevent electrical shorts or damage.

The IBR900 / IBR600 can be wired using one of three methods, depending on whether ignition sensing is used and which cable is available.

  • Option 1: Use the 4-pin square power port (default)
    Use this option only if ignition sensing is not in use.
  • Option 2: Use the GPIO extensibility cable
    Use this option if:
    • Ignition sensing (orange wire) is already in use
    • 4-Pin square power port wire is unusable for warning light activation
  • Option 3: Use the GPIO exensibility dock w/cable
    Use this option only if the extensibility dock has been installed
Option (Use ONE Only) Description Pin-Out
Connection (Option 1)

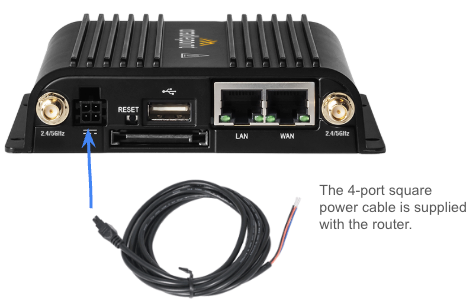

  • Use the orange wire from the 4-pin square power port cable (Input / Pin 3).
  • Connect the orange wire to the positive side of the vehicle's warning lights switch.
If the orange wire is already used for ignition sensing, Option 2 or 3 must be used.

R2R (if subscribed) will use the blue wire (Output / Pin 4).

Connection (Option 2)

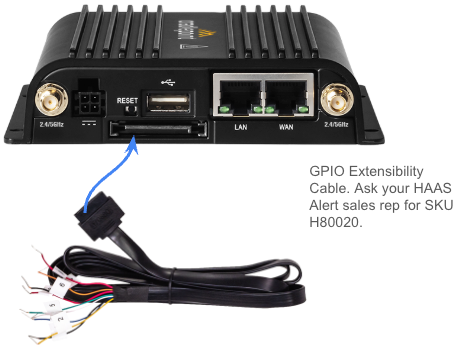

  • Use Orange (preferred), yellow, blue, white, or green wires on the GPIO extensibility harness:
    • Orange → Pin 7
    • Yellow → Pin 2
    • Blue → Pin 3
    • White → Pin 4
    • Green → Pin 5
  • Connect any one of these GPIO wires to the positive side of the vehicle's warning lights switch.
R2R (if subscribed) will use one of the remaining GPIO 1, 2, or 3 (Pins 7, 6, or 5) wires.

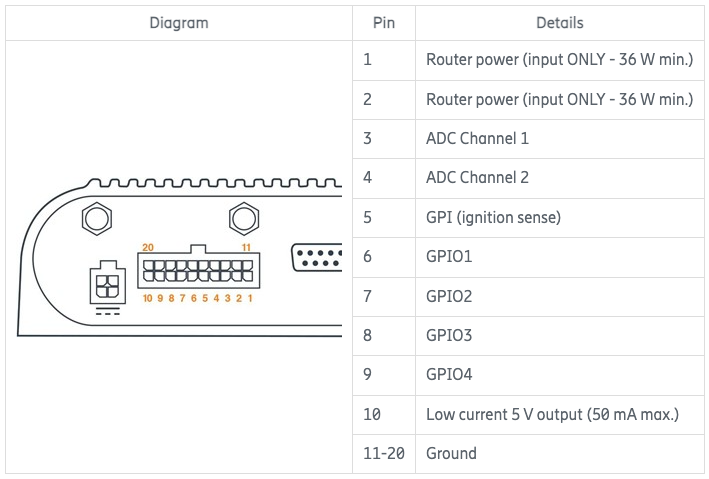

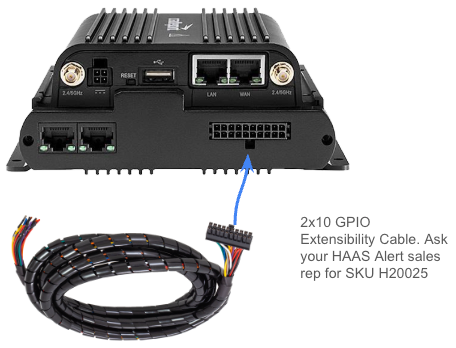

Connection (Option 3) w/Extensibility Dock
  • Use orange (preferred), yellow, blue, white, or green.
    • Orange -> Pin 5
    • Yellow -> Pin 6
    • Blue -> Pin 7
    • White -> Pin 8
    • Green -> Pin 9
  • Connect any one of these GPIO wires to the positive side of the vehicle's warning lights switch.
R2R (if subscribed) will use one of the remaining GPIO 1, 2, or 3 (Pins 7, 6, or 5) wires.
Important Notes
  • Only one wire is used to detect warning light activation
  • Ensure connections are made to the positive side of the warning lights switch
  • Always secure unused wires with heat shrink or electrical tape if using the extensibility cable
  • If unsure which cable to use, contact HAAS Alert support for guidance
