The VG-54/55 gateway from Samsara typically does not include the necessary cabling to connect your warning lights unless you specifically asked for the CBL-VG-CAUX cable when you ordered your gateways.
If you need this cable, you may order these on your own through your Samsara Webstore or your HAAS Sales representative.
Ordering CBL-VG-CAUX Cables
- Login to your Samsara Dashboard

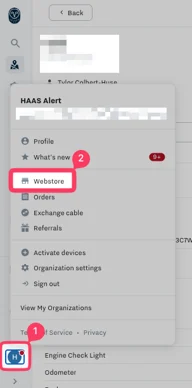

- In the left pane, click on the colored circle icon near the bottom

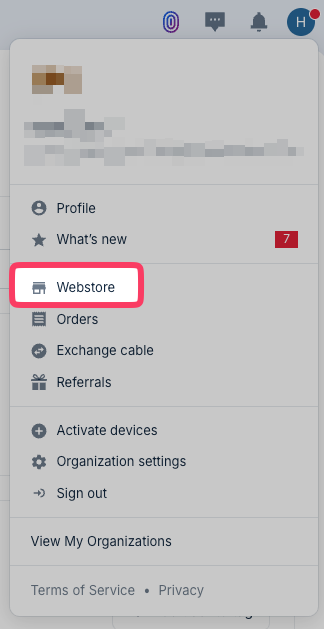

- Click on Webstore

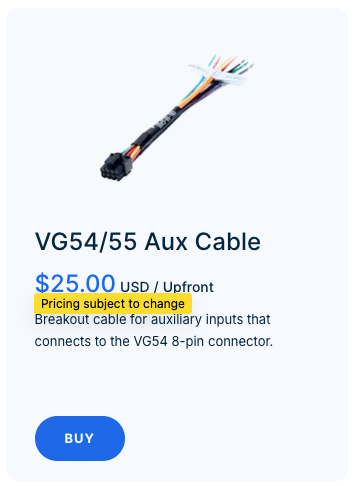

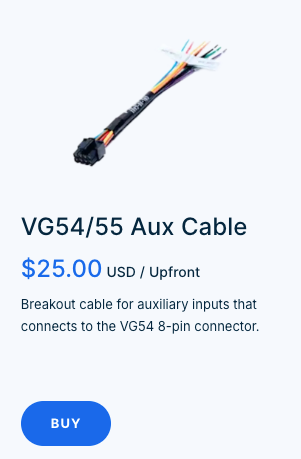

- Scroll down and look for the VG-54/55 Aux Cable option
- Adjust the quantity and complete the Checkout process
Tip: If you want to order these cables from HAAS Alert, please contact your HAAS Alert Sales representative
Connecting the VG-54/55 Cable

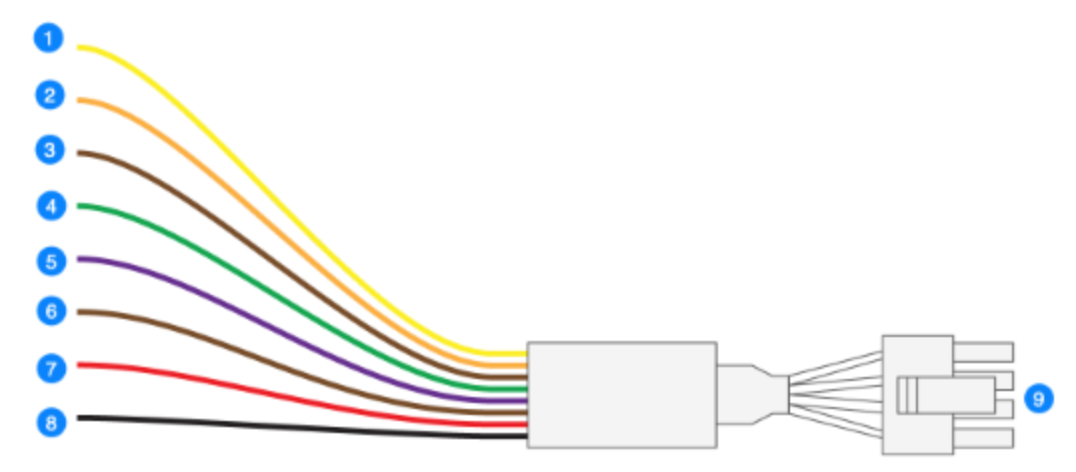

The CBL-VG-CAUX cable has five available auxiliary inputs (yellow, orange, brown, green, purple), and the cable looks like this:
- Connect the Samsara cable to the 8-pin port on the Samsara gateway
- Use the Orange wire for Auxillary Input 2
- Use a butt splice to connect the AUX wire to the warning lights switch
Note: You'll need to remove a rubber cover on the gateway to expose this port
If you used the recommended Orange wire, you will need to configure this Auxillary Input 2 in your Samsara Dashboard. If you had to use Brown, Green, or Purple, configure the corresponding Auxillary input number in the Samsara Dashboard.
